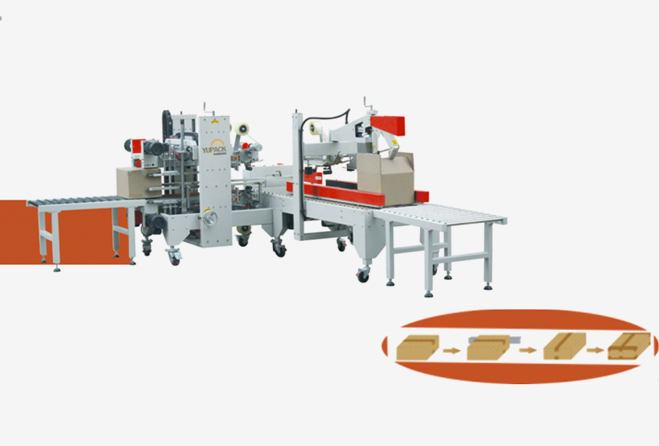

Case Flaps Folding Sealer And Case Edge Sealer
This ‘I’ shape carton sealing system is controlled by PLC and comprise case flaps folding sealer and case edge sealer. It is automated operated to achieve faster efficiency and smoothly appearance. This ‘I’ shape carton sealing system is suitable for combining with case erector for automatic packaging process. It is suitable for high capacity conditions and dealing with cartons in the same size.
1.According to the carton size, manual adjusting machine width and height,simple, convenient,fast.
2.After carton through the front cover folding lid carton sealer sealed then putted into the 90 degree angle machine,by the pushing plate pushed into the corner and side carton sealer.
3.Through the corner and side carton sealer to complete the four corner edge of top and bottom sealing,ultimately achieve the perfect H-shaped sealing.
4.The machine uses the PLC control,simple operation,conveniently repair,stable performance.
5.Suitable for a variety of cartons automatic folding lid H-shaped carton sealer, carton four corners at the same time automatic sealing,smooth,fast,stable,and can also be matched with automated packaging line.
6.Use this carton sealer to replace the manual,can reduce the 2-4 workers,raise 30% production efficiency,save 5-10% supplies,to enable enterprises to greatly reduce cost,improve efficiency,can realize packaging standardization.
Model
FXJ-AT5050
FXJ-P5050
Voltage
220V 50HZ
Power
240W
Max.packager size
L500*W500*H500MM
Min.packager size
L200*W150*H130MM
Conveyor speed
300-750boxes/h
Tape width
W48 、 60、 75 MM(optional)
Packing size
L1700*W900*H1500MM
L2000*W1200*H1500MM
Machine weight
180KG
450KG
