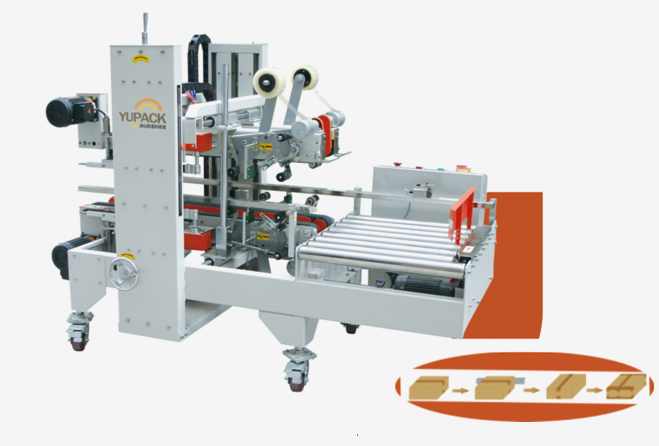

FXJ-P5050(L) series automatic carton edge sealing machine
FXJ-P5050(L) series automatic carton edge sealing machine is the machine used to seal four edges of the carton, the size of this machine can be manual adjusted to adapt to different carton size. It is easy operation, convenient using, fast, high efficiency, sturdy and durable, which is especially fitting for automatic packaging system.
This machine is special design and adopts high quality tape sealing and smoothing structure to gain a beautiful appearance of package. Meanwhile, it will gain a better appearance with the use of printed tape.
This machine is widely used in household appliances, textile, food, department stores, pharmaceutical, chemical and other industries.
This machine is suitable for combining with automatic flaps folding machine to accomplish carton ‘I’ shape sealing process.
This FXJ-P5050 (L) series automatic carton edge sealing machine has two models for your chosen, one is straight model and the other is curve one.
Four edges Sealing, good effect
Simplicity of operator,fast speed
Model
FXJ-P5050(L)
Voltage
220V 50HZ
Air supply
5-6KG/平方
Max.packager size
L500*W500*H500MM
Min.packager size
L320*W200*H180MM
Conveyor speed
400ctns/hr
Tape width
W48 、 60、 75 MM(options)
Packing size
L2000*W1200*H1500MM
Machine weight
450KG
