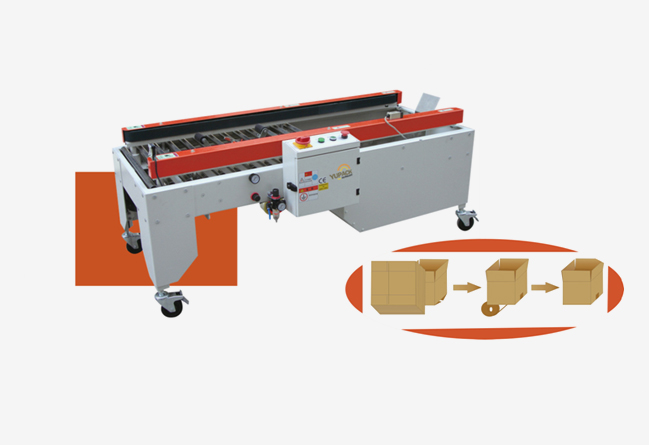

YPK-40A Semi-automatic Carton Erector
YPK-40A Semi-automatic Carton Erector machine structure design is simple, save a space, can only at the bottom of the carton sealing, sealing speed faster and affordable .Machines can be automatically according to the carton size to mediate the width and height, which simple easy to operate .Widely used in food, medicine, beverage, tobacco, chemical, automobile, cable, electron, etc., all walks of life both at home and abroad .This model has two types, one is sealing machine, one is the semi-automatic box erector.
Both sides of the belt drive, automatic carton sealer applicable to the product packing carton sealing, sealing effect tidy, specifications, and beautiful.
Use the stick tape sealing, manually open the carton, fold the bottom, then the case move to the sealing machine, automatic complete carton sealing action.
Use the sealing machine instead of human working ,which increase 30% in productivity, save 5-10% Consumables. Enterprises greatly reduce costs, improve efficiency, and achieve better packaging standardization
Model
YPK-40A
Voltage
220/380V、50Hz
Power
240W
Max.packager size
L∞×W500×H800MM
Min.packager size
L150×W150×H150MM
Conveyor speed
0-20m/min
Tape width
W48 、 60、 75 MM
Packing size
L1020×W850×H650MM
Machine weight
80KG
