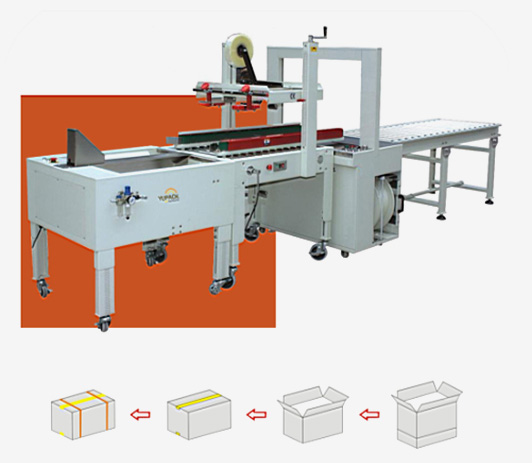

Packing Line Of Semi-auto Case Erector & Case Sealer
This system is comprised of semi-automatic case erector 、standard case sealing machine and automatic strapping machine., which is mainly suitable for artificial packing production line. For packing the same size of cartons at one time ,this machine sealing speed faster, effect better, and finishes assignments strapping , which is the first choice for enterprise automation packaging production line.
conveying speed is faster
Accomplish carton sealing and strapping simultaneously
PLC Controlled
Model
YPK-40A
FXJ-5050
MH-101A
Voltage
220V 50HZ
Power
120W
240W
750W
Max.packager size
L500*W550MM
L∞*W500*H500MM
L∞*W800*H600MM
Min.packager size
L200*W100MM
L80*W150*H120MM
L150*W50*H50MM
Conveyor speed
0-12M/Min
0-20M/Min
/
Tape width
2"、2.5"、3"
/
Machine size
L950*W800*H780MM
L1200*W850*H1330MM
L1110*W650*H1480MM
Machine weight
55KG
180KG
200KG
