Packing line of semi-autocase erector&case sealer& #-shaped type strapping
Thi

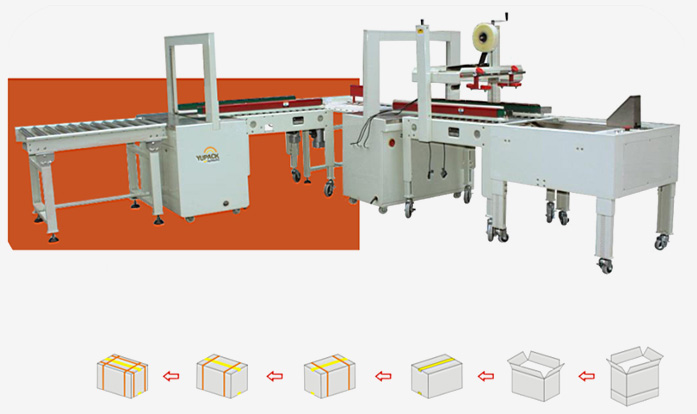

This system is comprised of one semi-automatic case erector, one standard case sealer and two automatic strapping machines. Integrating an automatic strapping machine into your packaging system can reduce packaging labor while controlling material costs. In the front of the machine need to be assisted for unpacking and the back-end can be used with unmanned automation line, reliable work, convenient operation, simple maintenance.
PLC Controlled
Accomplish carton sealing and strapping simultaneously
Small volume, saves the space.Sealing machine ahd strapping machine can be used separately
Modle
YPK-40A
FXJ-5050
MH-101A
Voltage
220V 50HZ
Power
120W
240W
750W
Max.packager size
L500*W550MM
L∞*W500*H500MM
L∞*W800*H600MM
Min.packager size
L200*W100MM
L80*W150*H120MM
L150*W50*H50MM
Conveyor speed
0-12m/Min
0-20M/Min
/
Tape width
2"、2.5"、3"
/
Machine size
L950*W800*H780MM
L1200*W850*H1330MM
L1110*W650*H1480MM
Machine weight
55KG
180KG
200KG
