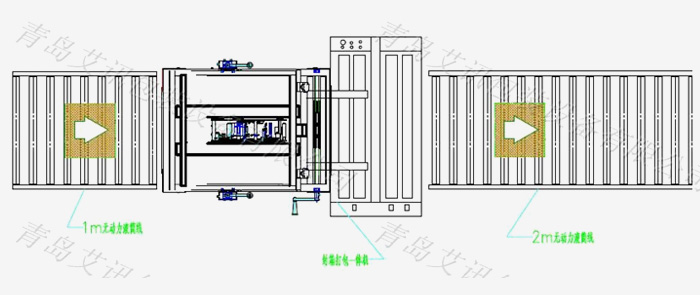

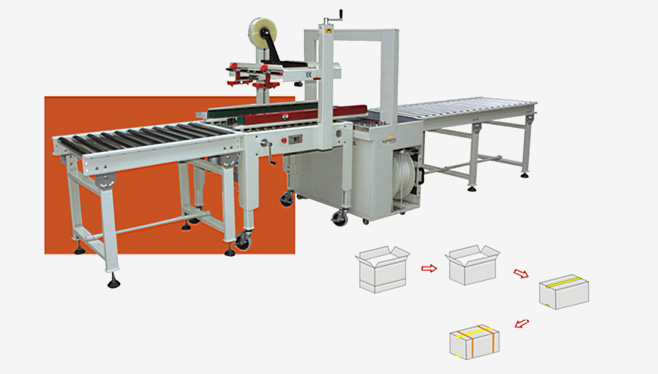

Packing line of carton sealing and strapping integrated machine
The carton sealing and strapping integrated machine is automatic equipment which integrate sealing and packaging together. The principle of this machine makes the sealing machine belt lengthen, through the sealing machine drive belt to transfer goods to the mesa of strapping machine, and the equipment adopt the same PLC control system ,Which solve the customer's requirement for sealing packaging overall operations, In the same time , the carton sealing and strapping integrated machine is an economic and practical automatic packaging equipment which greatly saves the cost of production for the customer.
PLC Controlled
Accomplish carton sealing and strapping simultaneouslySmall volume、save the space
Model
FXJ-5050
MH-101A
Voltage
220V 50HZ
220V/50HZ
Power
240W
750W
Max.packager size
L∞*W500*H500MM
L∞*W800*H600MM
Min.packager size
L150*W150*H120MM
L150*W50*H50MM
Conveyor speed
0-20M/Min
0-20M/Min
Tape width
1、1.5、2、2.5寸
/
Machine size
L1020*W850*H13500MM
L1110*W650*H1480MM
Machine weight
120KG
200KG
