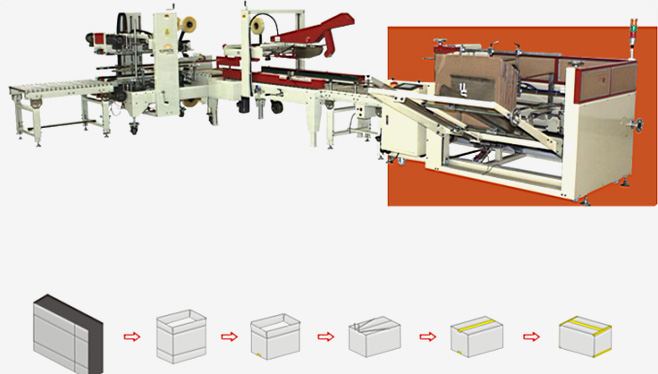

Packing line of auto case erector, cover folding case sealer,and edge case seal
This system is comprised case erector, fully automatic cover folding case sealer and edge case sealer,which is a high efficiency, unmanned sealing combination and suitable for unmanned assembly line production.
PLC ControlledAccomplish carton erector and I-shaped type carton sealer simultaneouslySave human resources, cost savings
Model
YP-K4012
FXJ-AT5050
FXJ-P5050
Voltage
220V 50HZ
Power
200W
200W
750W
Max.packager size
L450*W400*H350MM
L600*W500*H500MM
L500*W500*H500MM
Min.packager size
L200*W150*H100MM
L200*W150*H130MM
L320*W200*H180MM
Conveyor speed
0-12m/Min
300-750m/h
0-20M/Min
Tape width
2"、2.5"、3"
Machine size
L2000*W1900*H1450MM
L1700*W900*H1500MM
L1900*W1130*H1530MM
Machine weight
400KG
180KG
400KG
