- Home >> Products >> carton sealing&strapping integrated machine
-
Packing line of case erector,cover folding Case Sealer,and #-shaped strapping machine

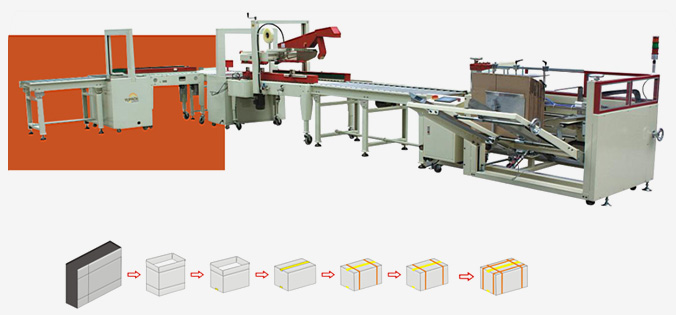

This system is comprised case erector, powered roller conveyor , Fully Automatic cover folding Case Sealer and two automatic strapping machines. This machine realized from uppacking to stapping streamline operation, suitable for connection to fully automatic unmanned lines, save human resource, save production cost, improve working efficiency.
PLC Controlled
Accomplish carton sealing and strapping simultaneously
Save human resources, cost savings
Model
YP-K4012
FXJ-AT5050
MH-101A
Voltage
220V 50HZ
Power
200W
200W
750W
Max.packager size
L450*W400*H350MM
L600*W500*H500MM
L∞*W800*H600MM
Min.packager size
L200*W150*H100MM
L200*W150*H130MM
L150*W50*H50MM
Conveyor speed
0-12M/Min
300-750M/h
0-20M/Min
Tape width
2"、2.5"、3"
Machine size
L2000*W1900*H1450MM
L1700*W900*H1500MM
L1110*W650*H1480MM
Machine weight
400KG
180KG
200KG
